Officially presented the HDMI 2.2 specifications, an improvement that offers us bandwidth to 96 Gbps and that we will soon see in new TV models.
From the regulatory group, HDMI Forum has published in an official announcement for the final specification HDMI 2.2 that will be integrated into many devices. This trade association has confirmed that the new specification will increase the total bandwidth to a new maximum of 96 Gbps, as a reference HDMI 2.1 has 48 Gbps and DP 2.1 goes up to 80 Gbps. With it appears the new specification for HDMI cables “Ultra96” that ensures to meet all the requirements of this connection.
The HDMI 2.2 Ultra96 cable according to the specification supports 4K at 480 Hz, 8K at 240 Hz and 10K at 120 Hz. In addition, a new Latency Indication Protocol (LIP) for audio synchronization is integrated to replace the current frustrating HDMI eARC.

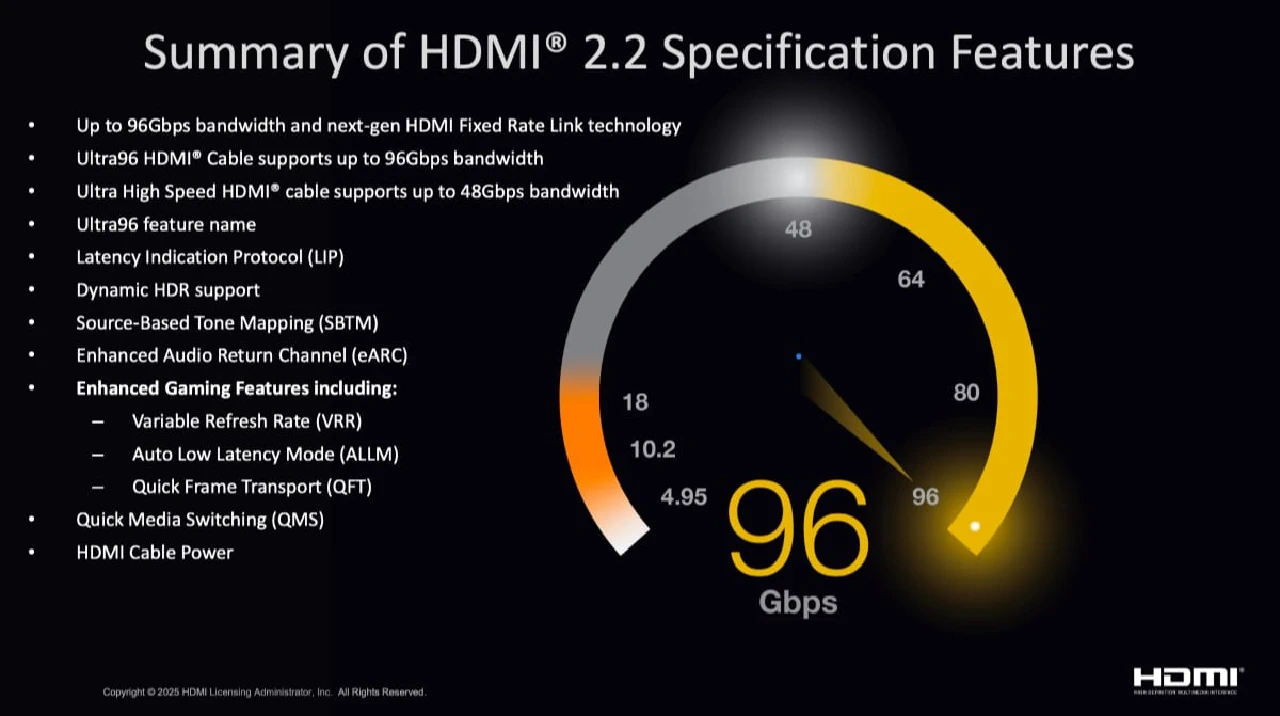

HDMI 2.2 connection specifications
New technology enables higher quality options now and in the future for content producers such as TV, film and video game studios, while enabling multiple distribution platforms. The higher bandwidth of 96 Gbps and next-generation HDMI Fixed Rate Link technology provide optimal audio and video for a wide range of device applications. The end user can be confident that their displays support a native video format in the best possible way and can deliver a smooth and reliable experience.
“The HDMI Forum’s ongoing mission is to develop specifications that meet the HDMI ecosystem’s growing demand for high-performance features and functionality,” says Chandlee Harrell, president of the HDMI Forum. “This new specification supports the rapidly evolving landscape of amazing new technologies and products entering the markets now and in the future.”
Higher resolutions and refresh rates will be supported and more high-quality options will be offered. Faster bandwidth of 96 Gbps enhances demanding virtual, immersive and data-intensive applications such as AR/VR/MR, spatial reality and light field displays, as well as various commercial applications such as large-scale digital signage, medical imaging and machine vision.
Audio / video synchronization
Latency Indication Protocol (LIP) is also included to improve audio and video synchronization, especially in multi-hop system configurations such as those with an audio and video receiver or soundbar.
Ultra96 Certified Cables
The specification includes a new Ultra96 HDMI® cable that supports 96 Gbps bandwidth and enables all features of the HDMI 2.2 specification. It is part of the HDMI Cable Certification Program, which requires the length of each model to be tested and certified and display a Certification Label.
