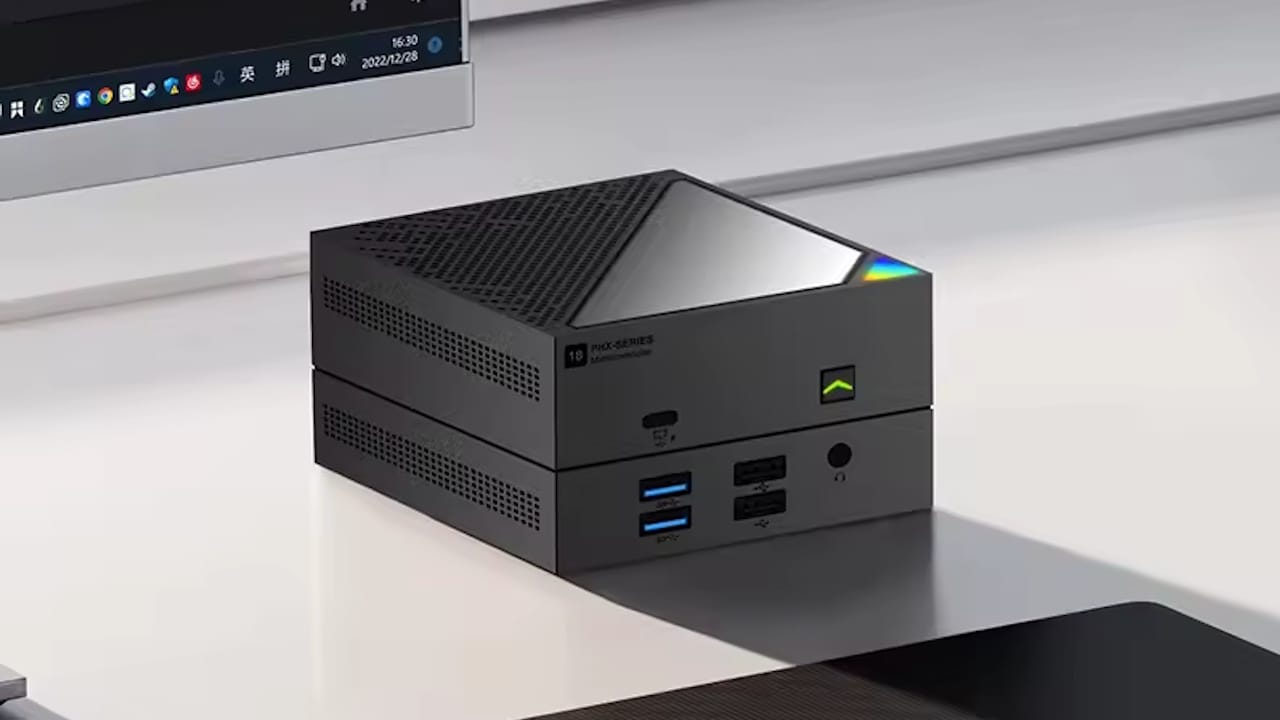

Introducing the new modular mini PC KINGDEL PHX18/K3, an original machine with a body of two different sections with separate ports.
This small modular PC has options to purchase with AMD Ryzen 5 6600H and powerful AMD Ryzen 7 7840U processors. In the lower area we have a magnetic base that connects to the main body expanding ports and allowing to mount an extra M.2 SSD inside. We have three video outputs and storage capacity up to 8 TB adding the two units.
A peculiar design that we can separate from its base and use only the upper area using the USB-C 3.2 connector for video data or power.
KINGDEL PHX18/K3 Specifications

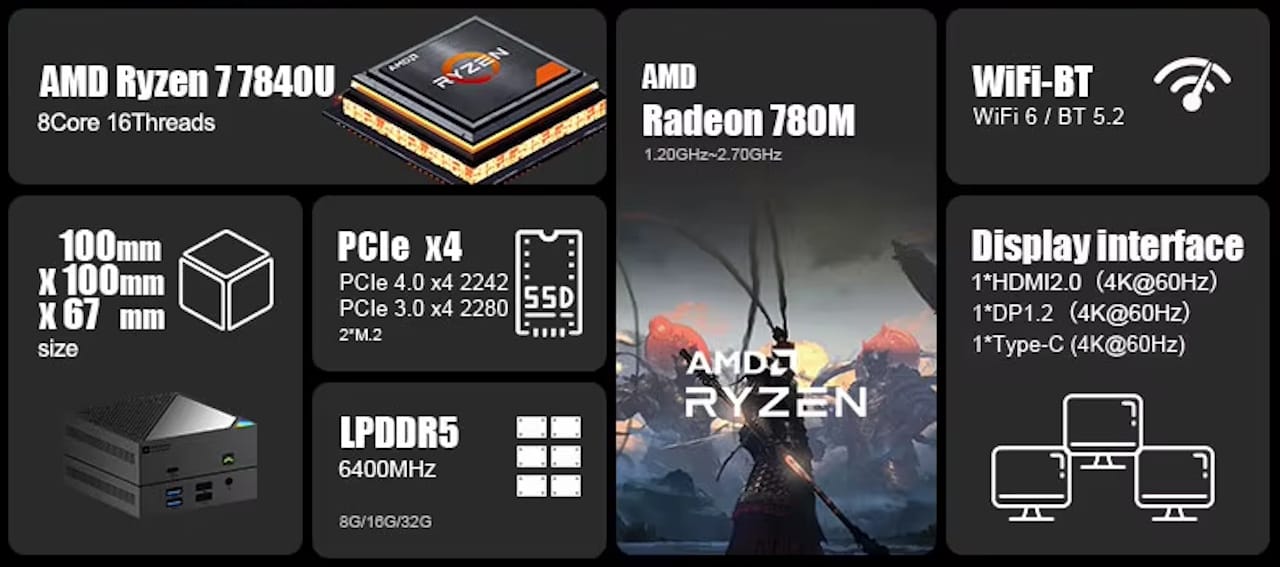

This low power mini PC has two processor potions. We have the AMD Ryzen 5 6600H in 6 nm with Zen 3 technology, a Hexa Core chip with twelve threads, with speeds up to 4.5 GHz and including a Radeon 660M iGPU with 6 RDNA2 cores. We can also opt for the AMD Ryzen 7 7840U APU manufactured in 4 nm, an Octa Core with 16 threads reaching 5.1 Ghz that integrates a Radeon 780M GPU with 12-core RDNA3 technology. Sufficient power in both versions to run demanding apps or use it as a server.
The available configurations include variants of up to 16 GB DDR5 6400 MHz / DDR5 4800 MHz. For storage we have an SSD M.2 2280 NVMe Pcie 3.0 with a capacity of 512 GB, in the lower modular area we have accommodation for an extra storage unit M.2 2280.
Connectivity and system

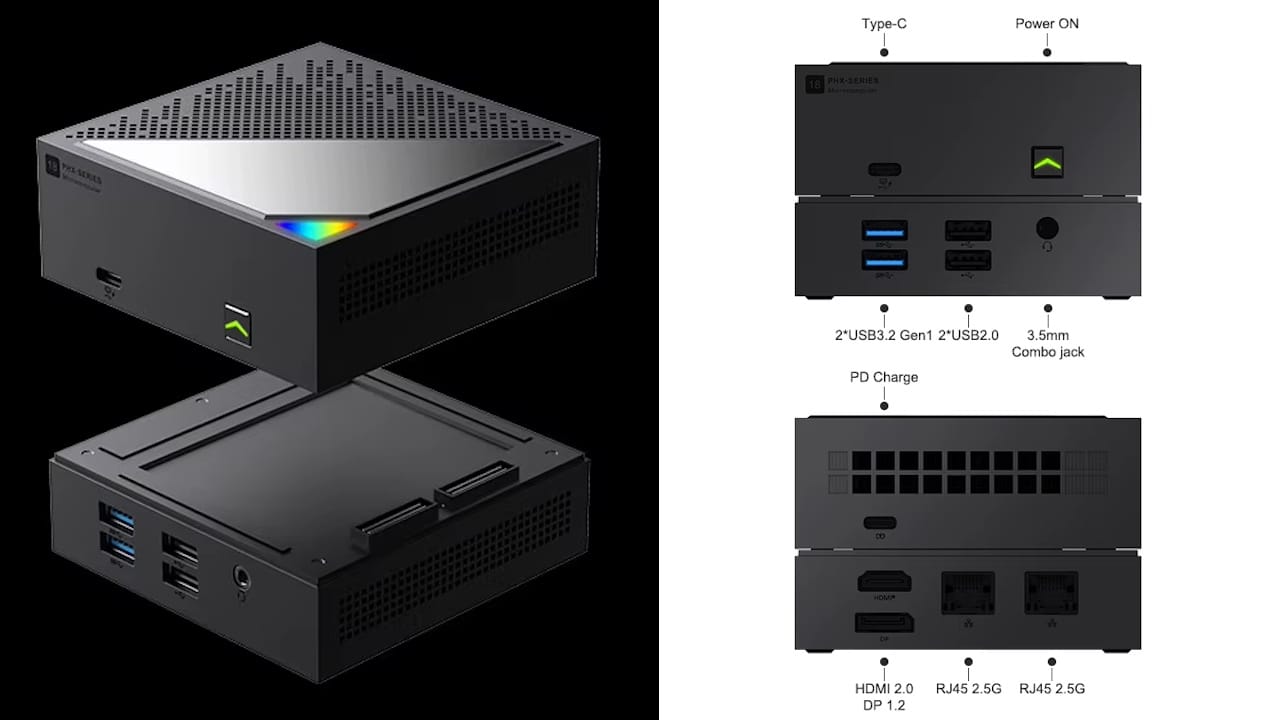

In the connectivity section, in the KINGDEL PHX18/K3 we have an adapter with Wifi 6, Bluetooth 5.2 and two RJ45 2.5G network ports. On the perimeter of the case we have two USB-A 3.2 ports, two USB-A 2.0, 3.5 mm audio jack and two video outputs HDMI 2.0 and DisplayPort 1.4. We also find two USB4 Type-C 3.2, one of them with data output, power and DisplayPort 1.4 video. In total we have 3 simultaneous video outputs up to 8K@60 HDR resolutions.
To power it we have a small external 12V DC adapter. The operating system is Windows 11 Pro, but we can install Linux if we prefer.
Price and where to buy
- The KINGDEL PHX18/K3 mini PC can be purchased on AliExpress and soon on Amazon starting at $329 for its simplest barebone version.
