REVIEW: Eachlink H6 Mini with Allwinner H6 SoC and 3GB of RAM

Kim by Kim
12/03/2018
4
Eachlink H6 Mini is the Android TV-Box of which we present today its analysis or review, this model integrate the little used Allwinner H6 SoC that has interesting specifications of connectivity and video quality. This model mounts in its small box 3GB of DDR4 RAM, 32GB of storage and a USB 3.0 connector. We will see in our usual review how this device behaves and the potential of its hardware in a model that competes without a doubt for price.
  • Eachlink H6 Mini can be purchased at Gearbest.com only for $38,99 (€34,69) with shipping cost
  • Buy the best add-ons like, USB HUB, USB memory to expand storage or others.

Table of Contents

  • PRODUCT DETAILS
    • Description
  • ANDROID SYSTEM
    • Environment and user experience
    • System, support and store apps
  • HARDWARE TESTS
    • Storage and RAM Memory
    • WIFI and Bluetooth
    • Power consumption, temperature and noise
  • PERFORMANCE TEST
    • SOC
    • Benchmarks
    • Games and gamepads
    • VIDEO AND AUDIO TEST
    • Video and audio connections
    • Video playback test
    • Audio playback test
    • Streaming services
  • CONCLUSIONS
    • Score
    • Opinion
  • WHERE TO BUY AND ADD-ONS
    • Add-ons
EACHLINK H6 review n03 min

PRODUCT DETAILS

Model Eachlink H6 Mini
Basic Specs SoC: Alwinner H6 Quad Core Cortex A-53 (64bit) / GPU Mali-T720 MP2 / 4x ARM-A53 @ 1.8GHz
System: Android 7.0 (32bit)
Ram and storage: 3 GB DDR4 – 32 GB eMMC
Network: Wifi b/g/n – Bluetooth 4.0 – Gigabit 10/100
Ports: HDMI 2.0a 4K@60fps / AV Jack / SPDIF Jack / Audio Jack / 1x USB 2.0 / 1x USB 3.0 / MicroSD / MicroUSB
Extras: IR remote control / HDMI cable / Manual / DC 5V 2A adapter
[button link=”http://2lnks.com/go/6e”]Check full specifications[/button]

Description

The TV-Box Eachlink H6 Mini is a fairly conventional model with a square plastic box rather small, at the top we have the logo of the device and a bright stripes.

  • Materials and measures: Plastic / 3.7 x 3.7 x 0.8 inch (96 x 96 x 20 mm) / 4.2 oz (120 gr)

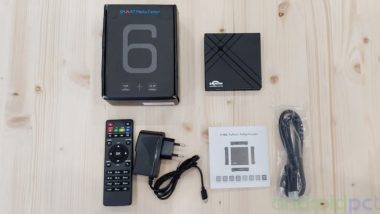

  • Package contents: Manual / Adapter DC 5V 2A / HDMI cable / IR remote control (2x AAA batteries not included).
  • Interfaces: HDMI 2.0a 4K@60fps / AV Jack / SPDIF Jack / Audio Jack / 1x USB 2.0 / 1x USB 3.0 / MicroSD / MicroUSB / Reset hole
  • Leds and panel: Frontal led panel (can’t be turn off)
  • Remote control: Basic IR control with quick access keys.
  • Alternative remote control: We can control remotely from our mobile or Android TV-Box using the app  Cetusplay or connect a flymouse, mouse or keyboard.

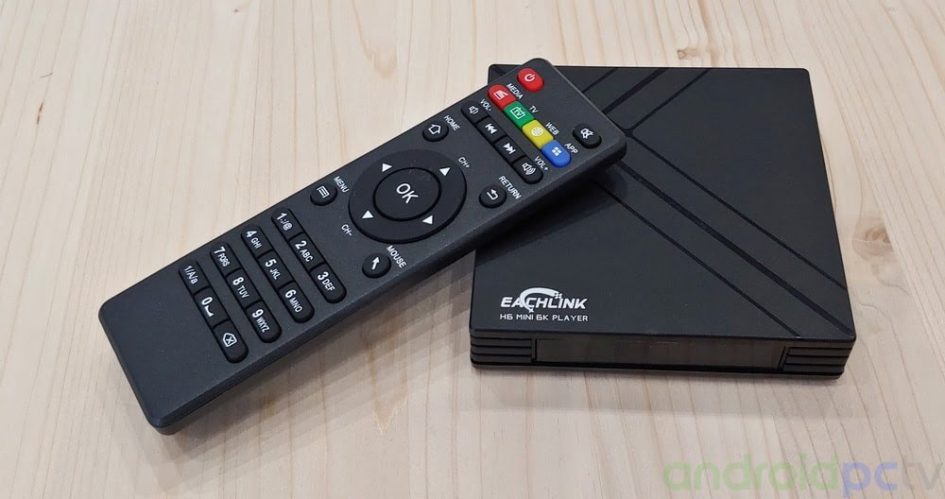

EACHLINK H6 review n05 min
EACHLINK H6 review n06 min

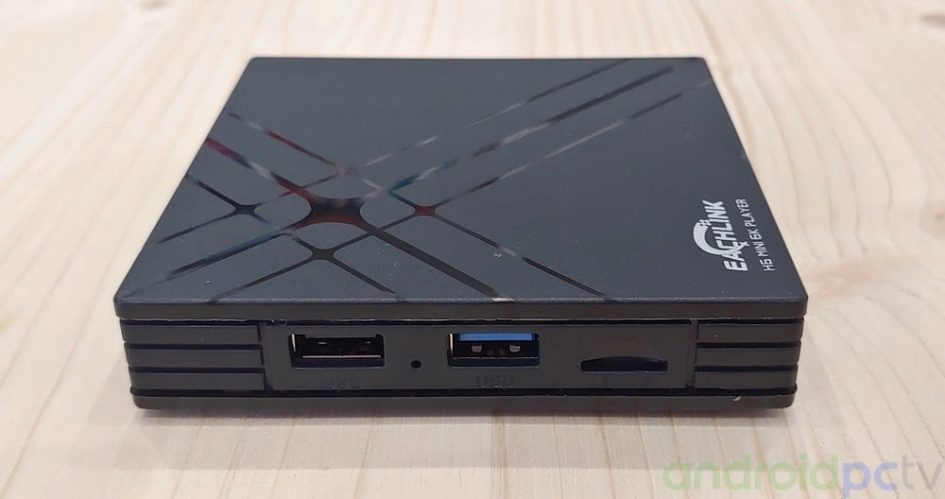

On the sides we have the thickness of the connectors, we have a USB 3.0 port, another USB 2.0, hole for reset, AV jack, SPDIF jack, microUSB connector, 10/100 Ethernet port, HDMI 2.0 compatible video output 4K@60fps HDR and microSD slot. In the lower part we have four rubber feet and holes to hang it.

EACHLINK H6 review n08 min
EACHLINK H6 review n07 min
EACHLINK H6 review n01 min

ANDROID SYSTEM

Environment and user experience

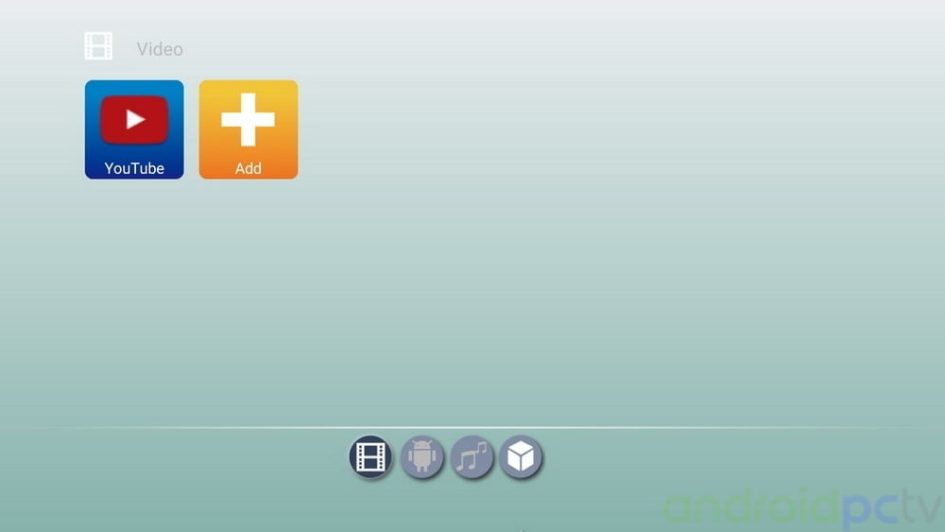

We turn on the Eachlink H6 Mini by connecting it to the power socket, it boots up automatically and the led frontal panel brights. After a simple input animation we get to the default launcher based on the classic squares, we can only customize the main categories, the lower bar fills itself with the latest apps that we run. The system moves correctly and loads the apps quickly, we have detected some closing messages on Google Play.

  • Launcher: Basic Launcher / YES we can change launcher / Android UI rendering at 1080p.
  • Multitasking and access: Multitasking not available directly / No lower access bar and notification area.
  • Installed apps: Google play, Netflix, several streaming apps, Miracast and Youtube.
  • Languages: All the international Android classics.
  • On/Off Controls: Pressing the power off button brings up a Restart or Shutdown menu.

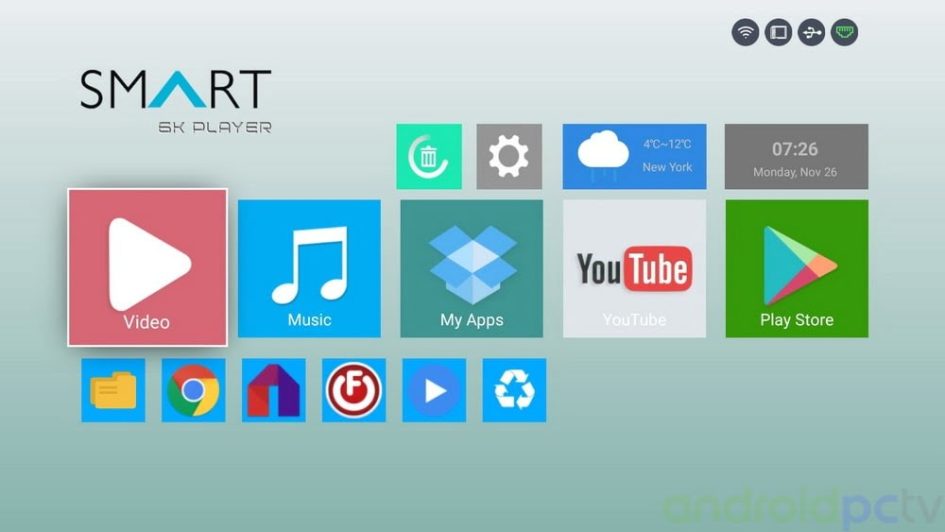

eachlink h6 mini review dt001 min

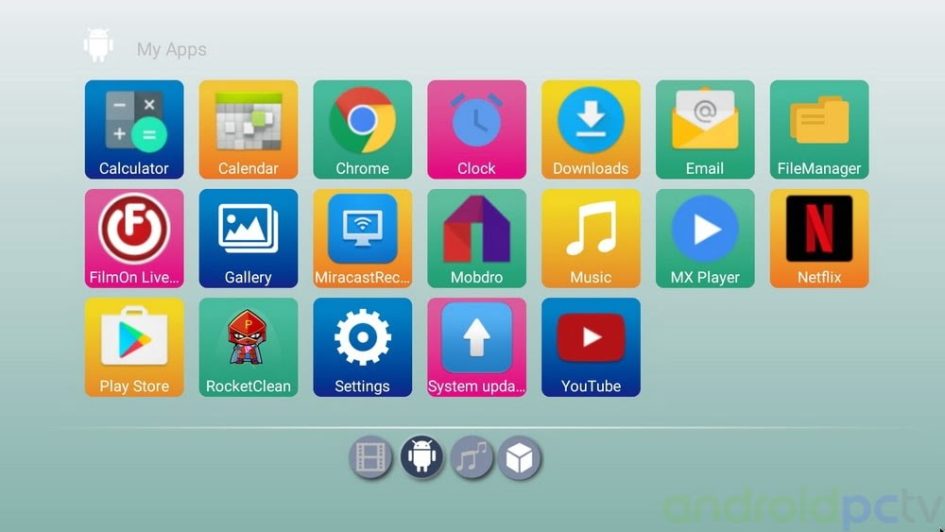

eachlink h6 mini review dt002 min
eachlink h6 mini review dt003 min

System, support and store apps

Regarding the settings the Eachlink H6 Mini It has a single menu of settings that has the classic design of Android. The Google Play store behaves normally and we can find the most common apps. The version of the system and the compilation of the kernel are not the last.

  • System version: Android 7.0 (32 bit) / Kernel 3.16.65 (08-11-2018).

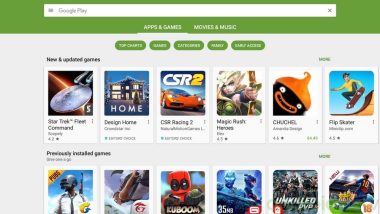

  • App store: Google Play with all the apps available for the Android system.
  • Brand support: This model does not have brand support, we will publish the firmwares that we find on the network.
  • Root and scene: The system IS rooted / There are no custom firmwares for this TV-Box / NOT compatible with LibreELEC.
eachlink h6 mini review dt006 min
eachlink h6 mini review dt005 min
eachlink h6 mini review dt004 min

HARDWARE TESTS

Storage and RAM Memory

We perform our usual memory tests and internal storage in the Eachlink H6 Mini using the SD bench app. As we can see in the tests, the internal storage speed is good, which makes the system show fast. We also have as a novelty with a USB 3.0 port that allows us much higher reading speeds than the classic USB 2.0 although the writing does not reach the maximum of this type of ports.

  • Storage: Total 32GB – Free 24GB. / Is expandable with a USB memory stick
  • RAM: Total 3GB – Free 2GB / DDR4.
  • Compatible formats: NTFS compatible / exFAT compatible
USB 2.0 USB 3.0 microSD SATA
Read / Write 22/21 MB/s – – –

Eachlink H6 Mini test eng disk 01 min

WIFI and Bluetooth

In Wi-Fi connections, the Eachlink H6 Mini TV-Box has a Wifi b/g/n 2.4GHz without Bluetooth 4.0 with which we connect to an ASUS RT-AC1200G+ Router, a mid-range device. We perform tests on the use of streaming using the iPerf measurement tool to see the maximum performance of each network adapter.

  • Wifi speed results: Correct speed for this wifi adapter, quite stable.
  • Wifi range: At a distance of 5 meters with a wall we have a signal of 40 dBm, correct values.
  • Bluetooth: We can connect compatible devices without problems.
  • We recommend reading our Tutorial SAMBA on Android networks if we are going to use files from our network PC.

Eachlink H6 Mini test eng streaming 01 min

Power consumption, temperature and noise

The power consumption of the Android TV Eachlink H6 Mini using the Allwinner H6 SoC it has the correct results in terms of efficiency. This Allwinner SoC only has a maximum consumption of only 7W.

Eachlink H6 Mini test eng power 01 min

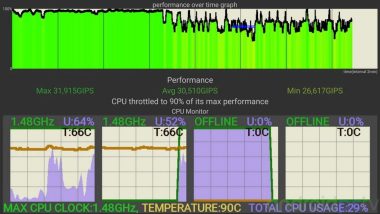

We check the performance of the TV-Box in scenarios of maximum sustained performance and in its usual use, we use a stress app for fifteen minutes and thermal camera to detect hot areas. As we have seen the Eachlink H6 Mini has few ventilation slots but the heat dissipation system works fine.

  • Loss of performance: The system maintains a maximum constant performance, there is very little loss of performance.
  • Temperature: The upper part heats up a little but does not affect the general use of the TV-Box.
  • Noise: Fanless system, 0db.
eachlink h6 mini review dt007 min
eachlink h6 mini review dt008 min
eachlink h6 mini review dt009 min

PERFORMANCE TEST

SOC

In terms of power Eachlink H6 Mini has very good results and leaves the Allwinner H6 Quad Core with processors ARM Cortex-A53 and GPU Mali-T720 MP2 in a zone of quite good performance. If we compare the results we can almost equal to the most powerful S912 Amlogic SoC from the last generation. In general performance it is below that of powerful models like the Rockchip RK3399 that integrates the powerful ARM Cortex-A73 cores, in global terms a correct product by its price. SoC

eachlink h6 mini review dt010 min
eachlink h6 mini review dt011 min
eachlink h6 mini review dt012 min

Benchmarks

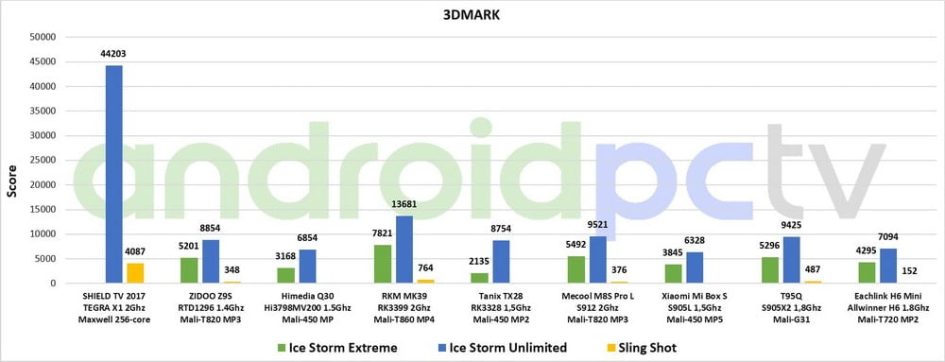

Eachlink H6 Mini test eng 3DMark 01 min

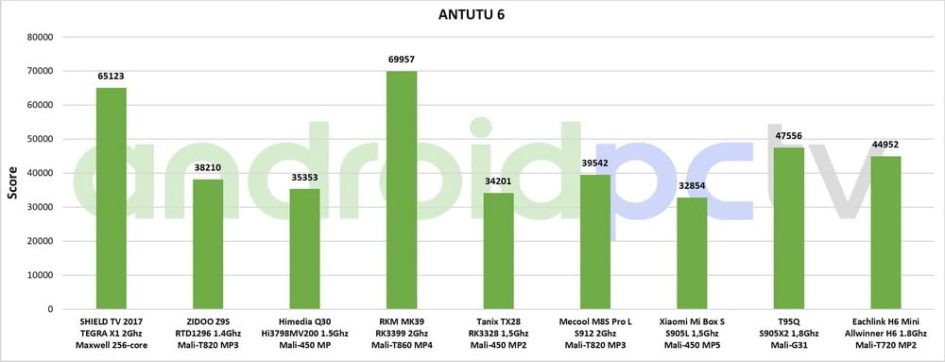

Eachlink H6 Mini test eng Antutu 01 min

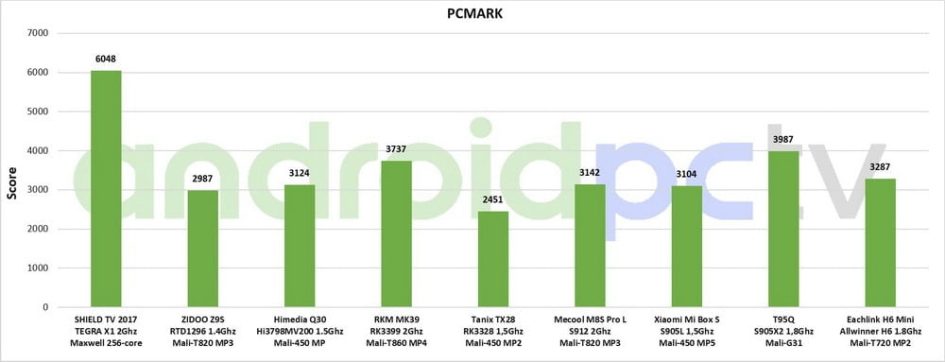

Eachlink H6 Mini test eng PCMark 01 min

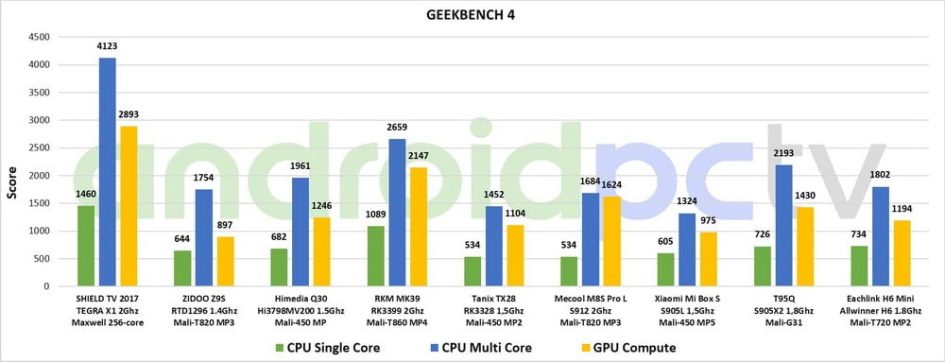

Eachlink H6 Mini test eng GeekBench 01 min

Games and gamepads

In the gaming aspect the Eachlink H6 Mini have the Allwinner H6 SoC that integrates a Mali-450MP5 GPU, this model allows us to correctly move most Android titles without performance problems and good compatibility. The games with a high 3D load also move quite well and this GPU allows us to play them correctly in low or medium settings.

  • Compatibility: IS possible to play demanding titles such as PUBG with a little frameskip.
  • Controls: Compatible with Gamepads by cable or bluetooth.
game review android z005 min
game android test n10 min
game android test n01 min

VIDEO AND AUDIO TEST

Video and audio connections

Regarding the multimedia playback the Eachlink H6 Mini behaves perfectly using the Allwinner H6 SoC a product that has video output support for HDMI 2.0a that allows maximum resolution up to 4K@60fps with HDR information. We also have SPDIF audio jack output, AV jack and stereo audio jack.

In this SoC we verify that we have image quality settings with brightness, contrast and saturation, we also have several preconfigured quality and image modes. To modify these settings we must change them in the native player and the effects will be applied to all players either MX Player or KODI.

  • Automatic refresh rate change: Not available, the settings exist but it does not work. *
  • Audio passthrough: Available in audio settings. *
  • Image adjustments: Image quality settings available / RGB mode / HDR <> SDR modes. *
  • Media sharing: Chromecast NO / Miracast yes / DLNA with BlubblePnP / Airplay no.
  • HDMI CEC: NO available in settings.
  • * Tutorials: Judder effect and how to avoid it / Multi-channel audio guide / Correct dark screen when playing video on Android.
eachlink h6 mini review dt014 min
eachlink h6 mini review dt015 min

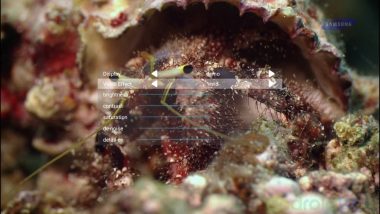

eachlink h6 mini review dt022 min

Video playback test

We passed our video playback tests on the Eachlink H6 Mini, a device that has the Allwinner H6 SoC and a VPU compatible with most video formats, in the VP9 formats the native player behaves much better than MX Player or KODI , we recommend using them as the main system. This model is NOT compatible with LibreELEC.

As the engine in the VPU we have the so-called Allwinner Phoenix 3.0 VE Engine a specific hardware that allows us to decode H.265 and VP9 up to 4K@60fps natively and on the other hand we have the Smartcolor 3.0 DE Engine that is responsible for controlling the HDR modes like HLG and HDR10, although it does not support Dolby Vision.

  • Compatibility: HEVC with good performance at 10 bit color or HDR / VP9 correct with P2, not compatible with 8K
  • Tutorials: Install Addons in KODI in a simple way / LibreELEC installation guide for the TV-Boxes with Android

Test results

H.264 / VC-1 Result
BBB – H.264 8bit – Simple@L1 – 1080p@25fps – 7 Mbps Correct
Samsung Oceanic Life – H.264  8bit – High@L5.1 – 1080p@30fps – 40 Mbps Correct
Timelapse – H.264 8bit – High@L5.1 – 4K@24fps – 43 Mbps Correct
Anime – H.264 10bit – High 10@L5.1 – 1080p@24fps – 10 Mbps Correct
MKV – VC-1 – Advance@L3 – 1080p@24fps – 17 Mbps Correct
H.265 / VP9 SDR
Tears of steel – HVEC 8bit – Main@L6.2@Main – 1080p@24fps – 17 Mbps Correct
Samsung UHD Dubai – HVEC 10bit – Main 10@L5.2@Main – 4K@24fps – 51 Mbps Correct
Anime – HVEC 10bit –  Main 10@L4@Main – 1080p@24fps – 21 Mbps Frameskip
Eye of the Storm – VP9 – 4K@24fps – 14 Mbps Correct
H.265 / VP9 HDR
Life of Pi HDR10 –  HVEC 10bit – Main 10@L5.1@High – 4K@24fps – 45 Mbps Correct
LG Demo – Dolby Vision – HVEC 12bit – Main 10@L5@Main – 4K@24fps – 30 Mbps Correct
Planet Earth II – HDR HLG 10bit  – Main 10@L5@High – 4K@25fps – 31 Mbps Correct
The world in HDR – VP9 Profile 2 10bit – 4K@60fps – 20 Mbps Correct
Peru 8K HDR – VP9 Profile 2 10bit – 8K@60fps – 20 Mbps No compatible
MAX BITRATE
Jellyfish – HVEC 10bit – Main 10@L6.1@High – 4K@30fps – Test up to 400 Mbps 60 Mbps = 7,5 MB/s
  • * The maximum bitrate depends on the internal storage, usb port, Ethernet adapter or wifi used, we have used the fastest available, see Hardware tests section of this same review to have more information and have consider the limitations of SAMBA Networks.

Audio playback test

Testing the Eachlink H6 Mini using a Yamaha RXV-577 AV receiver we check that they supports DD and DTS pass through sound. We can only listen to the multi-channel audio up to 5.1, if we do not have an AV receiver and we have problems to listen to files with AC3 or multichannel sound we must configure the system to listen to configure the system to listen to multichannel AC3 videos in stereo on any TV.

  • Ports: HDMI up to 5.1 / Optical output SPDIF up to 5.1 / Stereo audio jack
  • Certification: No
  • Chomecast Audio: No
eachlink h6 mini review dt016 min
eachlink h6 mini review dt017 min
eachlink h6 mini review dt018 min

Audio test results

Formats DD / DTS 5.1 DD+ / DTS MA DD True / DTS HR DD Atmos / DTS X
HDMI OK Core Core Core*
Optical OK Core Core Core*
  • PCM – Stereo only doing downmix from DD or DTS
  • Core – Only the core of the format is played back with what we passed to the Dolby / DTS base system
    * Our AV receiver does not support these native formats but we verify that it is played back to 7.1

Streaming services

We pass the classic tests on streaming services to see how the most popular services work. In this model does not have certificates for these services. The Eachlink H6 Mini model presents the classic configuration without certificates that limits us in quality in several streaming services, as it does not have notification bars, it also presents some classic problem of this type of configuration.

  • DRM: Google Widevine L3
  • Certification: No
Streaming service Video / Audio Result Manual
Youtube FullHD (1080p) / Stereo OK –
Google Play Movies HD (720p) / Stereo OK –
Netflix SD (480p) / Stereo OK Netflix on Android
HBO FullHD (1080p) / Stereo Pause icon frozen in the middle of the screen –
Amazon Prime Video SD (480p) / Stereo OK, install the apk Amazon Prime video on Android



eachlink h6 mini review dt019 min
Youtube

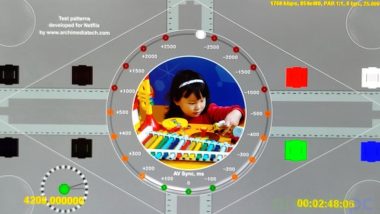

eachlink h6 mini review dt020 min
Netflix
eachlink h6 mini review dt021 min
DRM

CONCLUSIONS

Score

Eachlink H6 Mini _

Eachlink H6 Mini _
5.8

DESIGN AND CONNECTIVITY

6.0/10

HARDWARE

6.5/10

AUTONOMY

5.5/10

SUPPORT

4.0/10

PRICE/QUALITY

7.0/10

Pros

  • Compact
  • Multiple connections
  • USB 3.0
  • Playback video quality
  • Correct thermals

Cons

  • No support
  • Firmware can be better, no bars

Opinion

As we have test the Eachlink H6 Mini offers us a peculiar device, we have a TV-Box with Allwinner H6 SoC that brings us interesting improvements in several aspects. In this model we have a USB 3.0 connector and an interesting video decoding hardware that gives us good image quality using the native player. We have also been surprised by the speed of internal storage that is noticeable when using the system, the 3GB of DDR4 RAM is also appreciated.

The Eachlink H6 Mini as we see has a pretty basic firmware that has some stability failures as we have seen for example with the closing messages of Google Play. In this firmware we do not find navigation bars or notifications area which limits the use of the system in several apps or for example with multitasking. In general we are facing a device that stands out for its price and for some special video function but that is not very elaborate.

WHERE TO BUY AND ADD-ONS

  • Eachlink H6 Mini can be purchased at Gearbest.com only for $38,99 (€34,69) with shipping cost
  • You can compare this product with our recommended models to know alternatives.

Add-ons

  • Logitech K400 keyboard with trackpad control zone.
  • Keyboard and mouse Logitech MK270 economic and quality.
  • Flymouse with integrated microphone and full keyboard with light.
  • USB 3.0 pendrive to expand internal storage.
  • External hard disk up to 3GB to save media.
  • Bluetooth Gamepad to play games
  • Logitech Basic Webcam to video chat.

EACHLINK H6 review n04 min

Related Posts

Nokia Streaming Box 8010 review p01
Review Android TV

Nokia Streaming Box 8010, review: new box with Android TV and SoC S905X4-K

12/12/2022
rk3568 soc
Review Android TV

Rockchip RK3568, benchmarks Vs all current SoC

11/23/2022
chromecast google tv hd review t08
Review Android TV

Chromecast with Google TV HD, review: economical and simple

10/26/2022
Subscribe
Notify of
guest
guest
4 Comments
Inline Feedbacks
View all comments
Faird
Faird

Great review. Ton of detail.

Reply
Kim
Kim
Reply to  Faird

Thanks.

Reply
blaze2051
blaze2051

I love how you guys do the reviews and such making sure to test review and see what DRM level each box has. I would like to suggest that you also open up each box and document with pictures about what wifi chipset each box is using because that would help identify if its a broadcom or realtek based wifi module and can help developers make custom roms for these boxes for the greater good..

Reply
Kim
Kim
Reply to  blaze2051

We will try but sometimes is hard to open or the boxes change the wifi chip without notice.
The boxes must work fine without modifications.

Reply
wpdiscuz   wpDiscuz
Beelink

TOP REVIEWS (last 6 months)

  • Beelink GTR6
    Beelink GTR6, review: mini PC with AMD Ryzen 9 6900HX and RDNA2
    8.5
  • Beelink SER6 Pro 7735HS
    Beelink SER6 Pro 7735HS, review: mini PC with AMD Ryzen 7 + RDNA2
    8.5
  • Nokia Streaming Box 8010
    Nokia Streaming Box 8010, review: new box with Android TV and SoC S905X4-K
    8.4
  • Beelink SEi12
    Beelink SEi12, review: new mini PC with Intel Core i5-1235U
    8.2

LASTEST FIRMWARES

  • X98H PROFirmware for TV-Box X98H Pro with SoC Allwinner H618 (01-06-2023)
  • HK1 RBOX H8Firmware for HK1 RBOX H8 Box with SoC Allwinner H618 (02-02-2023)
  • TANIX-W2Firmware update for Android Box TANIX W2 with AMlogic S905w2 (02-20-2023)
Creative Commons License
This work is licensed under a Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License.
AndroidpcTV.com / Privacy Policy and Affiliation Agreement  / Cookie Policy (US) / User Data Policy (EU GDPR)
No Result
View All Result
  • NEWS
    • Android TV
    • Mini PC
    • Smart TV
    • Laptop & Ultrabook
    • Projectors
    • Consoles
    • Wearables & Domotics
    • Electric Vehicle
    • Tablet & 2-in-1
    • Smartphone
    • Processors & SoC
    • Robots & Vacuums
    • Development Boards
    • Others
  • REVIEWS
    • Android TV
    • Mini PC
    • Laptop & Ultrabook
    • Tablet & 2-in-1
    • Smartphone
    • PC Components
    • Apps & Software
    • Others
  • TUTORIALS
    • Android TV
    • Mini PC
    • Tablet
    • Smartphone
  • DEALS
  • FIRMWARES
  • DEVICE SHOPPING GUIDE
    • BEST ANDROID TV-BOX
    • BEST MINI PC
    • BEST SMART TV
  • CONTACT
wpDiscuz
